3000rpm 6BD-Z diesel engine prime power 120KW for power of the fire fighting pump in red

Product Categories

Weifang Huaxin Diesel Engine Co.,Ltd.

Contact Now

3000rpm 6BD-Z diesel engine prime power 120KW for power of the fire fighting pump in red

Name: 3000rpm 6BDZ diesel engine prime power 120KW for power of the fire fighting pump in red
Brand: Aoling
Price: 1 USD

Wholesale 3000rpm 6BD-Z diesel engine prime power 120KW for power of the fire fighting pump in red from china suppliers

Brand Name : Aoling

Model Number : 6BD-Z

Certification : CE

Place of Origin : Weifang

MOQ : 1

Price : Negotiable by model

Payment Terms : T/T

Supply Ability : 500Units/month

Delivery Time : In 7 days after receive the deposit.

Packaging Details : In export plywood

Speed : 3000rpm

Power : 120KW

Cool type : water cooled

Color : Red

Displacement : 5.785

Fuel consumption : 228g/kw.h

Bore*Stroke : 102*118

Cylinder number : 6

Compression ratio : 17.5:1

Weight : 570Kg

speed regulation method : mechanical

Oil capacity : 12L

Cooling capacity : 12L

Application of altitude : 1000m-3500m

Contact Now

Why choose us?

a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.

b, Quality-Control.

Raw Material Purchase Inspection.

Engine assemble inspection.

Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.

Before pack-Inspection.

c. Spare parts available.

d, Engine manual instruction and parts catalog together with engine.

e,All-life service after sale.

6BD-Z

Project	Technical parameters
Type	Vertical, vertical, water cooled, four stroke, natural breathing
fuel injection system	Straight line mechanical pump
Air inlet mode	Pressure boost
The number of cylinders	6
Bore stroke (mm)	102*118
Total displacement(L)	5.785
ignition order	1-5-3-6-2-4
Crankshaft rotation direction	Counter clockwise (for the flywheel side)
Compression ratio	17.5:1
Rated speed (r/min)	3000
1 hour power(kW/ r/min)	125
Idle speed (r/min)	750±50
Lowest fuel consumption rate (g/kW.h)	221
Fuel	Light diesel oil GB252
lubricating system	Pressure splash lubrication
Net quality (kg)	575
Dimensions(mm)	10686521081
emission level	European II or European (electronic control ECU)

3000rpm 6BD-Z diesel engine prime power 120KW for power of the fire fighting pump in red

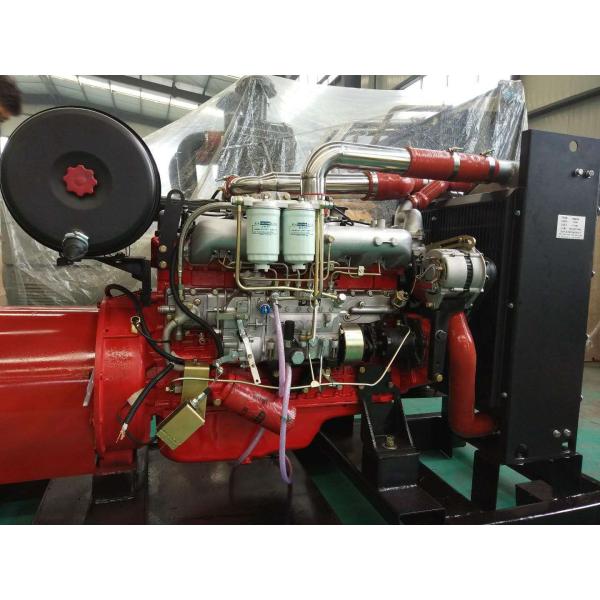

Engine in Stock

3000rpm 6BD-Z diesel engine prime power 120KW for power of the fire fighting pump in red

Export plywood package

3000rpm 6BD-Z diesel engine prime power 120KW for power of the fire fighting pump in red
